LATHE CAZENEUVE HB810 OF 6000-REBUILT
LATHE CAZENEUVE HB810 OF 6000-REBUILT
€65,000
Description

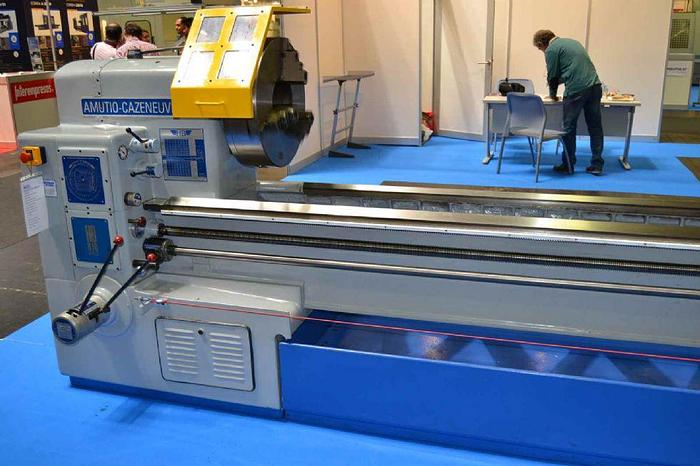

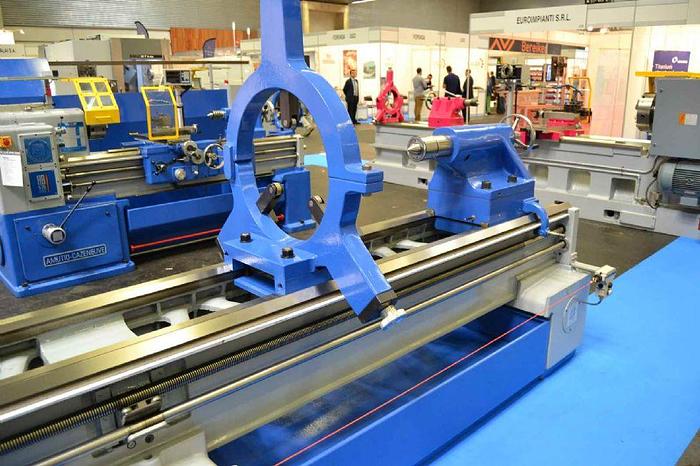

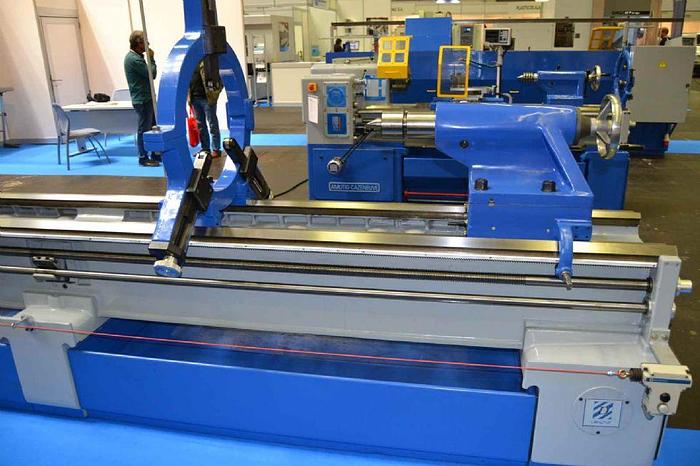

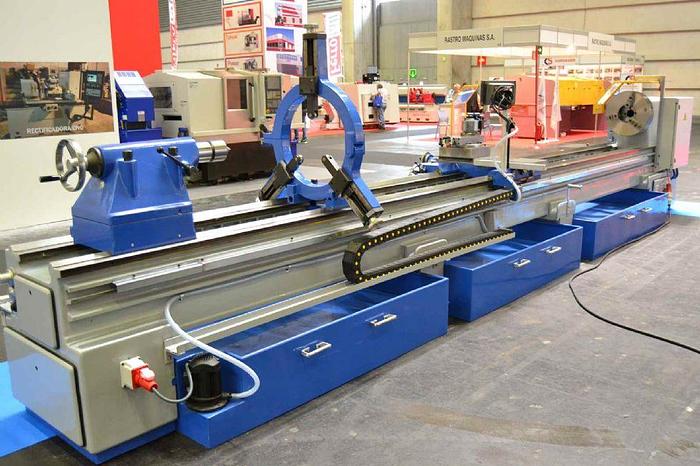

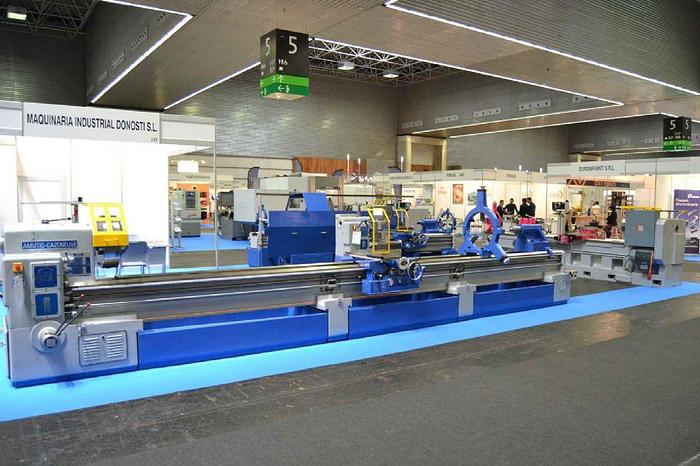

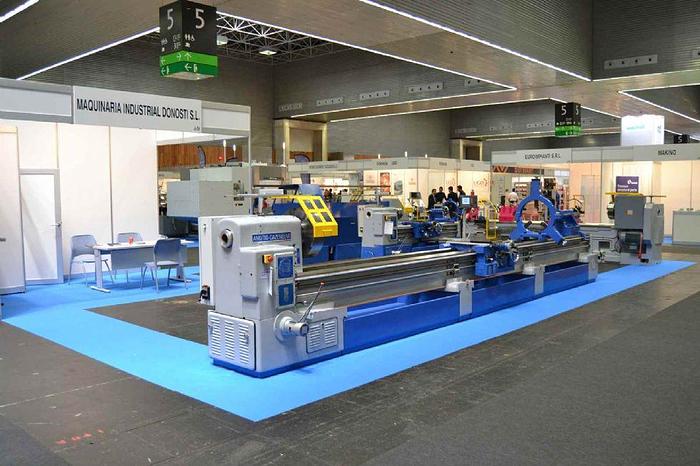

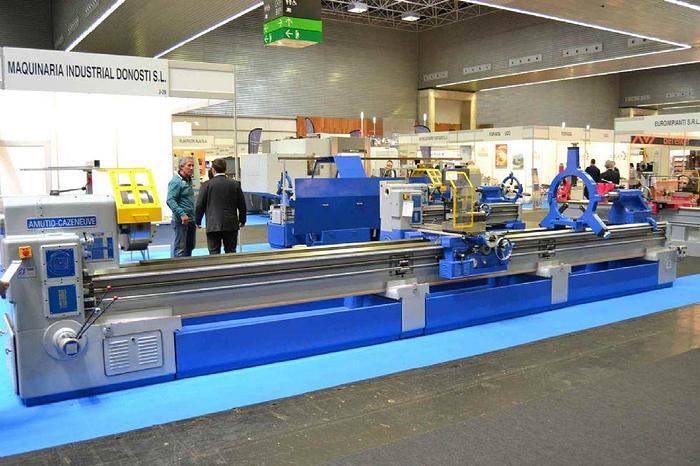

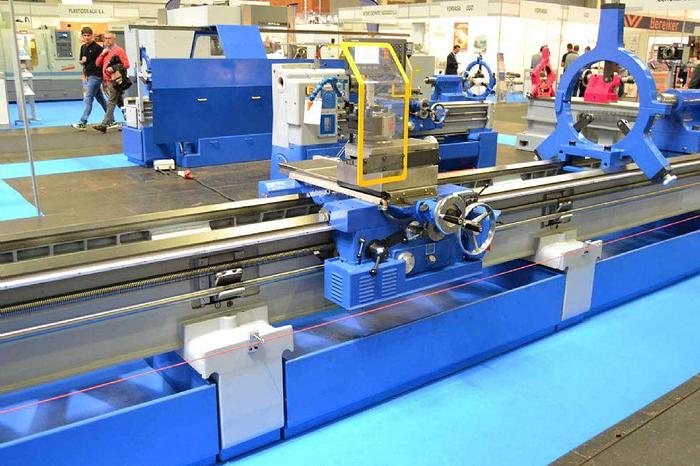

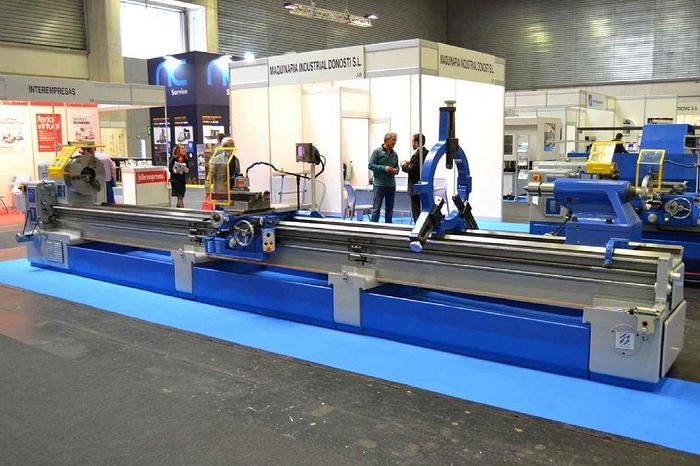

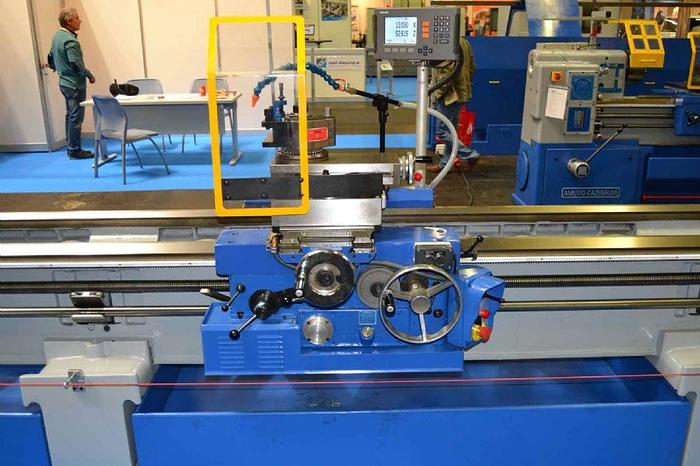

Amutio Cazeneuve HB810 rebuilt lathe. Equipped with new plate and steady rest. Protections on plate and carriage and CE certified (RD1215/97). (Optional fairing) Optional display.
Specifications
| Condition | Used |
| Stock Number | 00022 |
| Distance between points | 6000mm. |
| Diameter admitted on bench | 810mm. |
| Diameter allowed on carriage | 770mm. |
| Diameter admitted without transverse carriage | 500mm. |
| Height of points | 365mm. |
| Number of headstock spindle speeds | 18. |
| Inner diameter of the head shaft | 81mm. |
| Tailstock cone | CM-6 |
| Width of the bench | 505mm. |
| Maximum travel of the cross carriage | 400mm |
| Maximum course of the steerable carriage | 220mm. |
| Maximum travel of the tailstock reed | 235mm. |
| Machine weight | 5750Kgs. |
| Engine power HP | 25-20-15. |
| Machine dimensions | 7640x1270x1405. |
| Warranty | 1 year. |
